NewWater Boatworks
Texas' Only True Boatworks Facility

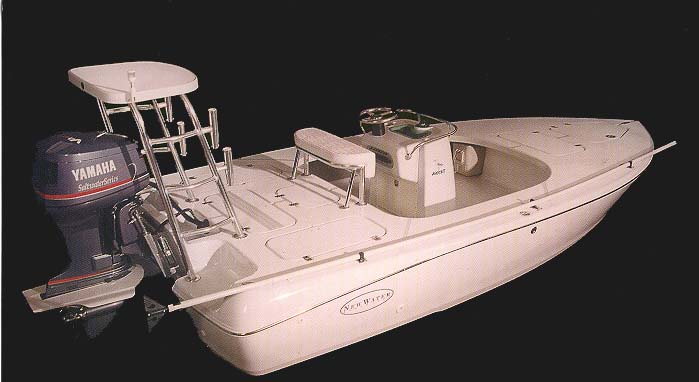

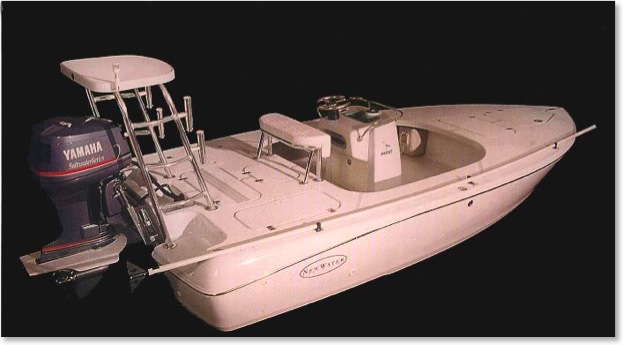

AVOCET
The Avocet was conceived with one goal in mind -- to develop the ultimate shallow water sport fishing machine. By combining the results of years of research and development with the finest in advanced technology and materials, NewWater took boat making to a new level.
Specifications
Length –––––––––––––––––––––– 18'-3"
Beam––––––––––––––––––––––– 8'-6"
Fuel Capacity––––––––––––––––– 45 gallons
Maximum HP––––––––––––––––– 150
Approx. Hull Wt.––––––––––––––– 1000 lbs
Draft and full fuel (at rest)––––––––– 6"-7.5"
Design Features
* Forward Anchor/Rope Locker with below deck cleat, rope rode and overboard drain
* Large cavernous dry storage area under foredeck
* Rigging locker, aft centerline with molded shelf for batteries, oil tank, etc.
* Two insulated aft quarter tubs for dry storage, coolers, or plumbed for livewells
* Aesthetically pleasing cambered deck surfaces and large radii throughout provide safety, strength, and rapid draining
* Two removable 25 qt. Iglootm coolers under foredeck
* Molded in diamond non-skid on all walking surfaces
* Self-bailing cockpit with oversized scuppers
* Aft deck seat cushion, folds against aft bulkhead while fishing
* Class A surfaces, styling, fit and finish
* Clean, non-glare, custom blended NewWater white
* Courtesy lights under side decks
* Navigation lights
* Full 5-year structural limited warranty
Construction
* Total wood free composite, including transom
* All parts 100% hand laid
* Totally unsinkable, with closed cell foam flotation kept outboard and high to prevent water absorption
* Extensive molded fiberglass stringer grid with limbers to ensure complete inner hull drainage
* Ashlandtm AME 5000 modified epoxy resin
* Cooktm Amorcote in mold coating
* Divinicelltm foam core
Options
* Leaning Post (Exchange for aft deck cushion)
* Poling Platform
- Welded Silver Tulip Rod Holders
- Welded Troll Motor Brackets
- Removeable Grab Rail
- Stake Out Pole Socket
- Moonlightertm Pole Gripper
* Push Pole
* Push Pole Holders - Standard Moonlighter
* Push Pole Holders - Retractable
* Bow Casting Platform
* Bow Casting Platform - Easily Removed (Includes Pop Up Cleat)
* Rod Holders
- Flush Mount
- Welded Silver Tulip
- Flyrod, Vertical Console Mount - 2 Rod
* Fly Rod Tube Storage Rack - Holds
2 Tubes
* Tackle Storage Organizer on Console Door - 3 Compartment
* Livewell Light
* T-Top 4' x 6', includes two antenna mounting plates and one mastlight mounting plate
- Four Rod Rocket Launchers
- Electronics Locker 24" (Molded)
* Trailer Options - Spare Tire & Rack
* Elevated Helm
* Foredeck Toe Rails
* Tilt Steering
* 20-Degree Helm Adapter
* "Bass Style" Seat Receptacles
* Console Cooler Seat, Includes Custom Po
ly Chocks
- Seatbase and Backrest Cushions
- Canvas - Custom Travel Cover, Aqualontm
- Console Center
- Leaning Post Cover
- Cockpit Cover
* Bow Lifting Hardware
* Additional Pop Up Cleats
* Windshield, Custom 3/8" Thick
The Avocet was conceived with one goal in mind -- to develop the ultimate shallow water sport fishing machine. By combining the results of years of research and development with the finest in advanced technology and materials, NewWater took boat making to a new level.
Specifications
Length –––––––––––––––––––––– 18'-3"
Beam––––––––––––––––––––––– 8'-6"
Fuel Capacity––––––––––––––––– 45 gallons
Maximum HP––––––––––––––––– 150
Approx. Hull Wt.––––––––––––––– 1000 lbs
Draft and full fuel (at rest)––––––––– 6"-7.5"
Design Features
* Forward Anchor/Rope Locker with below deck cleat, rope rode and overboard drain
* Large cavernous dry storage area under foredeck
* Rigging locker, aft centerline with molded shelf for batteries, oil tank, etc.
* Two insulated aft quarter tubs for dry storage, coolers, or plumbed for livewells
* Aesthetically pleasing cambered deck surfaces and large radii throughout provide safety, strength, and rapid draining
* Two removable 25 qt. Iglootm coolers under foredeck
* Molded in diamond non-skid on all walking surfaces
* Self-bailing cockpit with oversized scuppers
* Aft deck seat cushion, folds against aft bulkhead while fishing
* Class A surfaces, styling, fit and finish
* Clean, non-glare, custom blended NewWater white
* Courtesy lights under side decks
* Navigation lights
* Full 5-year structural limited warranty
Construction
* Total wood free composite, including transom
* All parts 100% hand laid
* Totally unsinkable, with closed cell foam flotation kept outboard and high to prevent water absorption
* Extensive molded fiberglass stringer grid with limbers to ensure complete inner hull drainage
* Ashlandtm AME 5000 modified epoxy resin
* Cooktm Amorcote in mold coating
* Divinicelltm foam core
Options
* Leaning Post (Exchange for aft deck cushion)
* Poling Platform
- Welded Silver Tulip Rod Holders
- Welded Troll Motor Brackets
- Removeable Grab Rail
- Stake Out Pole Socket
- Moonlightertm Pole Gripper
* Push Pole
* Push Pole Holders - Standard Moonlighter
* Push Pole Holders - Retractable
* Bow Casting Platform
* Bow Casting Platform - Easily Removed (Includes Pop Up Cleat)
* Rod Holders
- Flush Mount
- Welded Silver Tulip
- Flyrod, Vertical Console Mount - 2 Rod
* Fly Rod Tube Storage Rack - Holds
* Tackle Storage Organizer on Console Door - 3 Compartment
* Livewell Light
* T-Top 4' x 6', includes two antenna mounting plates and one mastlight mounting plate
- Four Rod Rocket Launchers
- Electronics Locker 24" (Molded)
* Trailer Options - Spare Tire & Rack
* Elevated Helm
* Foredeck Toe Rails
* Tilt Steering
* 20-Degree Helm Adapter
* "Bass Style" Seat Receptacles
* Console Cooler Seat, Includes Custom Po
- Seatbase and Backrest Cushions
- Canvas - Custom Travel Cover, Aqualontm
- Console Center
- Leaning Post Cover
- Cockpit Cover
* Bow Lifting Hardware
* Additional Pop Up Cleats
* Windshield, Custom 3/8" Thick
All NewWater boats are built from scratch, not copies or modified versions of someone else's design. Each model is developed from full-size patterns that are perfected on the water. With over 20 years of experience -- along with its association with the industry's most sought-after Naval Architects, Marine Engineers and fishing guides -- we have created a legacy of product integrity.
